Product Details

Description

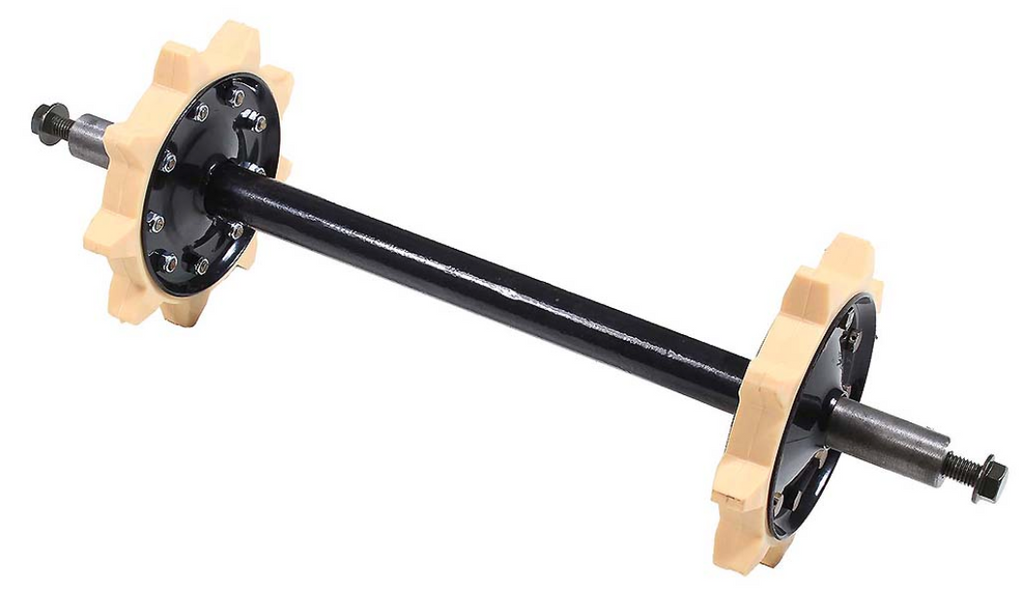

Includes the shaft assembly, and mounting hardware for the sprocket that installs in the splines.  This shaft assembly is installed at the rear of the machine (or the end opposite from the chain).

For a complete set, you may also need this Transmission Driven Shaft.



Components of the kit:

1 transmission driven shaft 1 pcs
2 screw M12x30 2 pcs



For models with serial numbers ending in these ranges:
Compact B7ZE L [004494-004558] 2016
Compact B10ZE WL [004444-004493] 2016
Standard B10ZE WL [004337-004443] 2016
Standard B13ME WR [004162-004271] 2016
Standard B13ME WR [004272-004336] 2016
Compact C-B13ME WR [006607-006631] 0
Compact C-B10ZE WL [006294-006393] 0
Compact C-B13ME WR [006394-006493] 0
Compact C-B13ME WR [007440-007744] 0
Standard S-B10ZE WL [008084-008195] 0
Standard S-B13ME WR [005524-005566] 0
Standard S-B13ME WR [005679-006043] 0
Standard S-B13ME WR [006044-006293] 0
Standard S-B13ME WR [006494-006606] 0
Standard S-B13ME WR [006632-006839] 0
Standard S-B13ME WR [008196-008210] 0
Standard S-B13ME WR [008531-008630] 0
Compact C-B13ME WR [008926-009162] 0
Compact C-B13ME WR [008771-008830] 0
Standard S-B13MER WR [005359-005423] 0
Standard S-B13MER WR [007914-008083] 0
Standard S-B13MER WR6 [008359-008408] 0
Standard S-B13MER WR7 [008631-008770] 0
Standard S-B13MER WR7 [008831-008926] 0
Standard S-B13MER WR7 [009163-009366] 0
Standard S-B13MER WR7 [009797-009850] 0
Standard S-B13MER WR7 [010213-010412] 0
Standard S-B13MER WR7 [010413-010872] 0
Standard S-B13MER WR7 [011033-011382] 0
Compact C-B13ME WR [010873-011032] 0
Compact C-B10ME-WR [003722-003771] 0
Standard S-B13MER WR7 [012967-013197] 0
Standard S-B13MER WR7 [013265-013374] 0
Standard S-B13MER WR7 [013395-013666] 0
